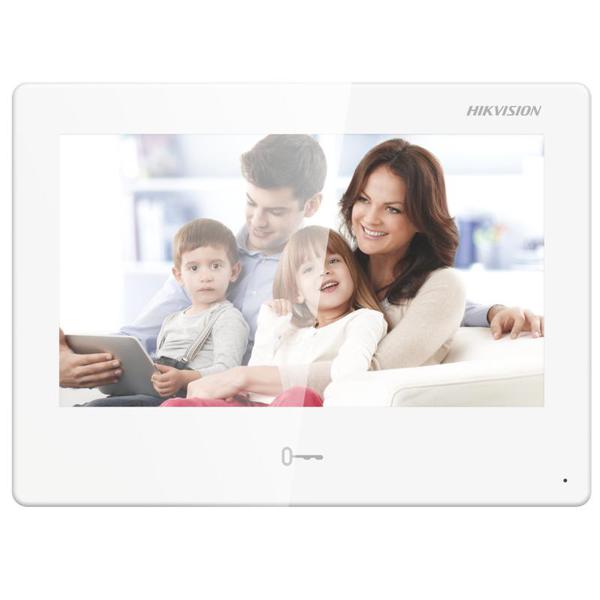

DS-KH8380-WTE1

8 Series Indoor Station

• 7-inch TFT touch screen with 1024 × 600 resolution
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Standard IEEE802.3at PoE power supply and power the lock
• Supports up to 16 indoor extensions linkage
• Elevator access control
• Supports surface and flush mounting
• Rich interfaces: alarm in, RS-485, relays, TF slot

• System parameters
• Operation systemEmbedded Linux operation system
• ROM32 MB
• RAM128 MB
• ProcessadorEmbedded high performance processor

• Display parameters
• Screen size7-inch
• Método de operaçãoCapacitive touch screen
• TipoColorful TFT
• Resolução1024*600

• Video parameters
• Lentes/
• Resolução/
• FOV (campo de visão)/
• Wide dynamic range (WDR)/
• Padrão de compactação de vídeoH.265；H.264
• Focal length/

• Audio parameters
• Audio input1 built-in omnidirectional microphone
• Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio output1 built-in loudspeaker
• Taxa de bits de compressão de áudio16/32/64 Kps
• Qualidade de áudioNoise suppression and echo cancellation
• Ajuste de volumeAdjustable

• Capacidade
• Message capacity

  TF card inserted: 200 captured pictures, 200 alarm records

  Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

• Notice capacity200
• Linked network camera capacity16
• Linked indoor extensions capacity16
• Linked doorphone capacity/

• Parâmetros de rede
• Network protocolTCP/IP, SIP, RTSP
• Wi-FiWiFi 802.11b/g/n
• Rede sem fio1 RJ-45 10/100Mbps self-adaptive
• Bluetooth/
• 3G/4G/
• Zigbee/

• Device interfaces
• Entrada de alarme8
• Network interface1 RJ-45 10/100Mbps self-adaptive
• TAMPER/
• RS-4851
• USB/
• TF cardSupport TF card, up to 128 G
• Saída de alarme/
• Lock control4 relays, Max. 30 VDC 1A
• Power supply outputMax. 12 VDC 0.5 A
• Porta de depuração1
• Relé4

• Geral
• Botão/
• InstalaçãoFlush mounting, surface mounting, table mounting
• Indicador/
• PesoWithout package: 366.7 g (0.808 lb)
• Nível de proteção/
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90% (no-condensing)
• Pressão do ar em funcionamento178.4 mm × 126.4 mm × 21.8 mm (7.02" × 4.98" × 0.86")
• Bateria/
• Fonte de alimentaçãoIEEE802.3at, Standard PoE,12 VDC, 1.5 A
• Ambiente de aplicaçãoIndoor
• Power consumption≤ 12 W
• IdiomaEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
• MaterialPlastic casing
